Bolts DIN 1436 form A

Bolts DIN 1436 form A

2 reviews since 21.06.2021
Product information "Bolts DIN 1436 form A"

Although bolts according to DIN 1436 form A are, in principle, standardised bolts, the situations in which they are fitted are often very individual and specific and it is rare for one bolt to be identical to another. That is why our bolts are usually tailor-made for you.

To help you find exactly the bolt you need faster and more conveniently in the future, we are providing you with this configurator. In addition to the time you save, you will not only also benefit from lower prices than when making a conventional mail inquiry. Your bolts will also be prioritised and speeded through our manufacturing process!

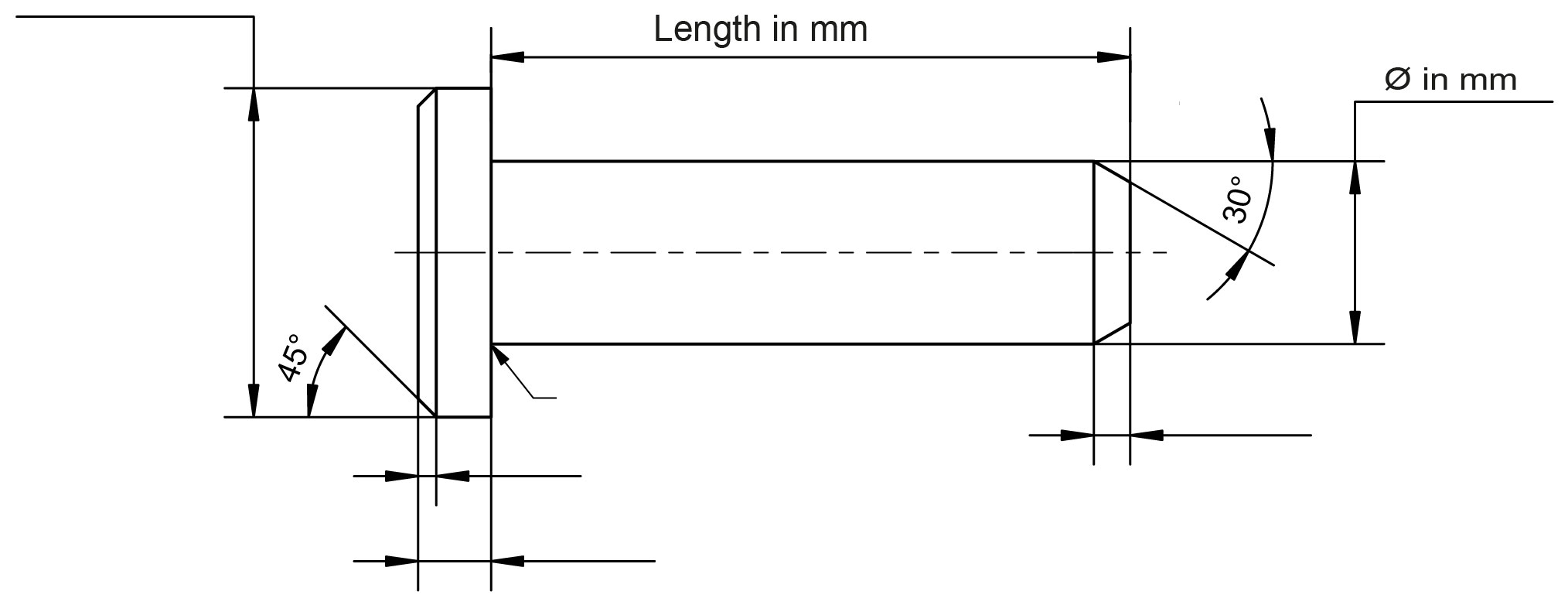

Bolts DIN 1436 form A dimensional drawing
Example for ordering
Bolt without pin hole according to DIN 1436 form A, d = 10 mm, l = 30 mm,
undercut steel 1.0718 (11SMnPb30+C), electroplated galvanised white;
Article no.: 36 10 0000 0030/013

d1 h11 6 7 8 10 12 13 14 16 18 20 22 23 25 26 28 30 31 32 35 36 40 41 45
d2 js16 12 14 16 20 25 25 28 28 30 32 34 36 40 40 42 45 45 50 52 52 58 58 62
k js16 3 4 4 4 5 5 5 5 5 6 6 6 7 7 7 7 8 8 8 8 8 8 9
r 0,5 0,5 0,5 0,6 0,6 0,6 0,5 0,6 0,6 1 1 1 1 1 1 1,5 1,5 1,5 1,5 1,5 1,5 1,5 1,5
z1 ≈ 1,5 2 2 2 2,5 2,5 2,5 2,5 3 3 3 3 4 4 4 4 4 5 5 5 5 5 5
z2 ≈ 0,5 1 1 1 1,5 1,5 1,5 1,5 1,5 2 2 2 2 2 2 2 2 2 2 2 2 2 2
l1 js15  x = range of standard lengths
10 x
12 x
14 x x x
16 x x x
18 x x x x
20 x x x x
22 x x x x x x x x
25 x x x x x x x x
28 x x x x x x x x
30 x x x x x x x x
35 x x x x x x x x x x x x
40 x x x x x x x x x x x x x x
45 x x x x x x x x x x x x x x
50 x x x x x x x x x x x x x x x x x x x
55 x x x x x x x x x x x x x x x x x x x
60 x x x x x x x x x x x x x x x x x x x x x x
65 x x x x x x x x x x x x x x x x x x x x x x
70 x x x x x x x x x x x x x x x x x x x x
75 x x x x x x x x x x x x x x x x x x x x
80 x x x x x x x x x x x x x x x x x x x x
85 x x x x x x x x x x x x x x x x x x x
90 x x x x x x x x x x x x x x x x x x x
95 x x x x x x x x x x x x x x x x x x x
100 x x x x x x x x x x x x x x x x x x x
105 x x x x x x x x x x x
110 x x x x x x x x x x x
115 x x x x x x x x x x x
120 x x x x x x x x x x x
125 x x x x x x x x x
130 x x x x x x x x x
135 x x x x x x x x x
140 x x x x x x x x x
145 x x x x x x x x
150 x x x x x x x x
160 x x x
170 x x x
180                                         x x x

Legal notice for consumers

Please note that this product is always an individually-manufactured product for you and for this reason we cannot grant you the  right of revocation ! The product will be manufactured exactly according to the issued drawing, which you will receive again by e-mail when you place an order.
