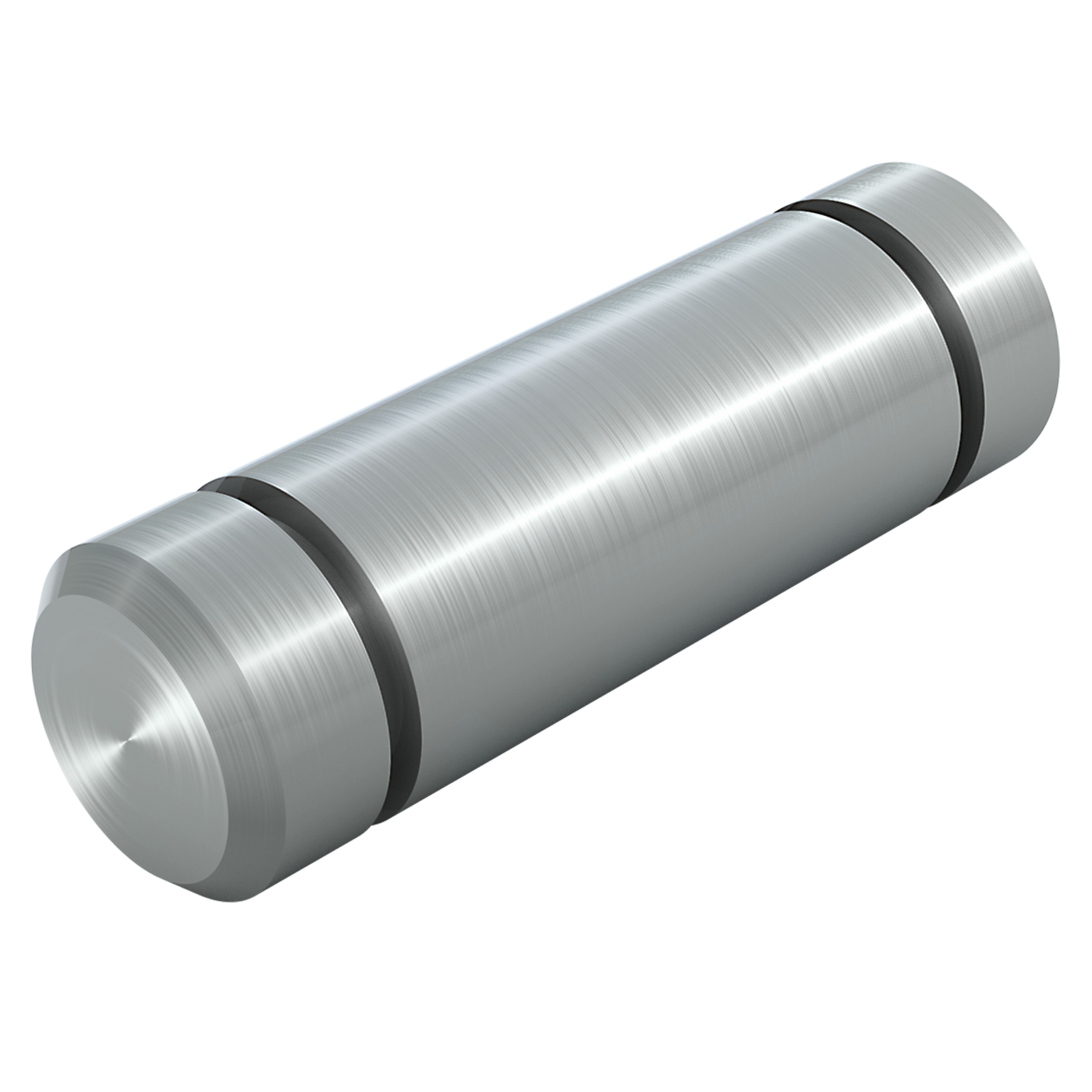

Bolt with groove without head BE 30 x 70 x 60,5 Steel electr. galvanised white
Please first choose whether you are a private or corporate customer!
We have unfortunately had to adapt the price of this item due to cost increases in our supply chain. We would be happy to work with you to find a solution to minimise the impact of this increase. Please get in touch with your contact person to discuss this:
The quantity currently authorised for the shop has been exceeded. However, we would be delighted to receive a request from you!
Unfortunately, there is a minimum order volume of [[minsurface]] units due to the coating used. Alternatively, you can receive the products uncoated (bright, lightly oiled) or in stainless steel (1.4305, 1.4301 or 1.4404) even as a one-off part:
The product was successfully added to your shopping cart
[[ title ]]
Price per piece
[[ formatedPrice ]]On request
from [[ price.from ]] pieces only [[ price.price ]]
Optional
Delivery time
[[ computedDelivery(deliveryData?.deliveryTimeDays) ]]
On request
still [[ stock ]] pieces in stock
Fast-track this part (max. 400 units) through our production facility. Shorten the delivery time by 1-2 working days. We are currently exclusively testing this delivery service for Germany.
Accessories for [[ title ]]
Price per piece [[ formatTaxPrice(aprice[article.number]) ]]On request
|
Selection for data retrieval
On request
[[ computedDelivery(adeliveryData[article.number]?.deliveryTimeDays) ]]
Shopping cart
Total price
[[ formatedSumprice ]]On request
incl. VAT
plus shipping costs
* suitable for clevis G 30x54 according to CETOP standard
Article no.
10 78 0000 0030/013
Identifier
Bolt with groove, without head, for retaining rings DIN 471 (suitable for clevises)
Size
BE 30 x 70 x 60,5
Material group
Steel
Surface
electr. galvanised white
Suitable retainer DIN 471
30
d1 h11
30
d2
28,6
d2 Tolerance
h12
l1
70
l1 Tolerance
+0,3
l2
60,5
l2 Tolerance
+0,3
m
1,6
m Tolerance
H13
z ˜
2
Mass (kg) per 100 pieces
38,5
Material
Undercut steel 1.0715 (11SMn30) / 1.0718 (11SMnPb30), alternative: hardened
