mbo Osswald supplies sealing caps for DIN 71802-compliant angle joints. The gap between the ball socket and ball stud is covered by a sealing cap, thus providing optimum protection against irreversible damage due to environmental influences.

Sealing caps for angle joints DIN 71802

4 reviews since 21.06.2021

Please first choose whether you are a private or corporate customer!

We have unfortunately had to adapt the price of this item due to cost increases in our supply chain. We would be happy to work with you to find a solution to minimise the impact of this increase. Please get in touch with your contact person to discuss this:

The quantity currently authorised for the shop has been exceeded. However, we would be delighted to receive a request from you!

Unfortunately, there is a minimum order volume of [[minsurface]] units due to the coating used. Alternatively, you can receive the products uncoated (bright, lightly oiled) or in stainless steel (1.4305, 1.4301 or 1.4404) even as a one-off part:

Undercut steel (1.0715/1.0718) Stainless steel (1.4305) Stainless steel A2 (1.4301) Stainless steel A4 (1.4404)

The product was successfully added to your shopping cart

Price per piece

[[ formatedPrice ]]On request

from [[ price.from ]] pieces only [[ price.price ]]

Optional

Delivery time

[[ computedDelivery(deliveryData?.deliveryTimeDays) ]]

On request

still [[ stock ]] pieces in stock

Express delivery (+[[ (!loading.delivery && !loadAll && hasExpress?formatPrice(deliveryData.ExpresslieferungPauschale*tax):"") ]])
Fast-track this part (max. 400 units) through our production facility. Shorten the delivery time by 1-2 working days. We are currently exclusively testing this delivery service for Germany.

Private customer (with VAT)

Corporate customer (without VAT)

Minimum quantity of [[minquantity]] pieces. From then on a minimum position value of [[minrevenue]] € applies.

Total price

[[ formatedSumprice ]]On request

incl. VAT
plus shipping costs

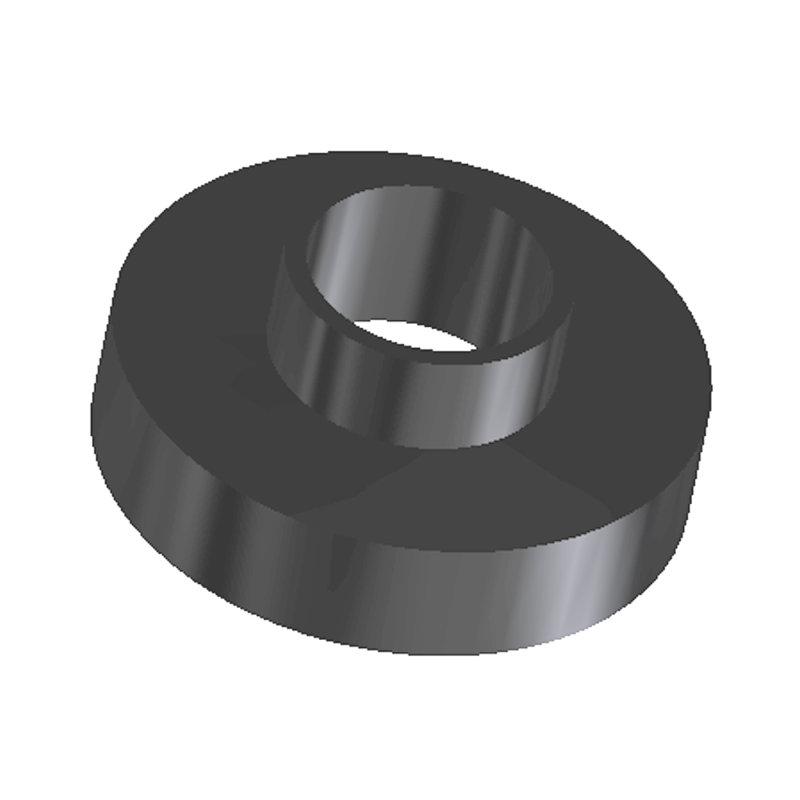

Sealing caps for angle joints DIN 71802 - Dimensional drawing

To find the article you want, you can select any number of filter criteria or search texts or combinations of the two at the top of the table.
To cancel your filter settings again, click on the "Clear" button below the table.
You can display product details, including the eShop function and 3D model , by clicking in the row corresponding to the required article.

Product information "Sealing caps for angle joints DIN 71802"

1. Product description

We offer high-quality sealing caps for our angle joints according to DIN 71802, which have been specially developed to protect the gap between the ball socket and ball stud. Our sealing caps provide optimal protection against damage from environmental influences such as dust, dirt, splash water, and fumes.

The sealing caps are made of sturdy chloroprene and are thus usable in a wide temperature range from -30°C to +110°C. They can even withstand temperatures up to +140°C for short periods, emphasizing their versatility and durability.

Thanks to their versatile usability, our sealing caps are available for almost all standard versions of angle joints according to DIN 71802 and axial joints. Therefore, they ensure the best possible protection and a longer service life of joint connections in every industry and application.

2. Product details

Size: 8 - 19

Material group: Rubber

Surface: bright

Material: Chloroprene (CR)

Temperatures ranging: -30°C to +110°C (for short periods up to +140°C)

3. Application Areas & Compatibility

The use of sealing caps for angle joints DIN 71802 is particularly useful in environments and applications where protection against dust, dirt, splashes, and fumes is essential. Here are some specific application areas where sealing caps are particularly advantageous:

Mechanical engineering: Protection of joints in machinery and systems used in dusty or contaminated production environments.

Automotive engineering: Application in suspension components and steering mechanisms frequently exposed to dirt, water, and road dust.

Agricultural machinery: Protection of joint connections in tractors, combines, and other agricultural machinery operating under extremely dusty and often muddy conditions.

Construction machinery: Use in joints of excavators, wheel loaders, and other construction machinery working in dirty, wet, and abrasive environments.

Food industry: Application in areas where joint connections need to be protected from splashes and cleaning fumes.

Chemical industry: Protection of joint connections against aggressive fumes and chemicals that can be corrosive.

In these and many other areas, sealing caps for angle joints DIN 71802 offer outstanding protection and help ensure the functionality and longevity of connections.

Our sealing caps are available for almost all standard versions of angle joints according to DIN 71802.

4. Advantages and Benefits

Advantages

Comprehensive protection: Sealing caps protect the gap between the ball socket and ball stud from dust, dirt, splashing water, and vapors, maintaining joint integrity.

Extended lifespan: Protection against harmful environmental influences significantly extends the lifespan of the angle joints.

Durable material: The sealing caps are made of chloroprene, offering high resistance to mechanical stresses as well as chemicals, oils, and greases.

Use in wide temperature range: Usable in temperature ranges from -30°C to +110°C, and briefly up to +140°C, allowing versatile use in different environments.

High compatibility: The sealing caps are available for nearly all standard versions of angle joints according to DIN 71802, increasing flexibility in application.

Benefits

Reduced maintenance effort: Comprehensive protection reduces maintenance effort and decreases the necessity of frequent inspections and repairs.

Cost savings: Extending the lifespan and reducing maintenance effort result in significant savings in operating costs.

Operational safety: The reliability and functionality of machines and systems increase through the continuous protection of the joints, enhancing operational safety and efficiency.

Versatile application possibilities: Due to high compatibility and material properties, the sealing caps can be used in a wide range of industrial sectors and applications.

Eco-friendliness: Protecting angle joints reduces their replacement frequency, conserving resources and reducing environmental impact.

Easy installation: The sealing caps are easy to install, speeding up and simplifying the installation process.

The use of sealing caps for angle joints according to DIN 71802 thus offers numerous advantages and significant benefits for the durability and efficiency of mechanical linking elements in various industrial applications.

5. Assembly and Installation

Step 1: Choose the correct size of the sealing cap that fits the angle joint DIN 71802.

Step 2: Ensure that the angle joints are clean and free of dirt and debris.

Step 3: Slip the sealing cap over the ball of the ball stud and then insert the stud into the ball socket, ensuring that the sealing cap covers the gap between the ball socket and ball stud. It is important to ensure that the sealing cap sits evenly and completely on the joint without folds or gaps.

Step 4: Check the secure fit of the sealing cap to ensure no dirt or moisture can penetrate.

6. Safety instructions & Standards

Wear appropriate protective equipment: Use protective gloves and, if necessary, safety goggles during assembly to avoid injuries from sharp edges or tools.

Maintain a clean work environment: Ensure the work area is clean and free from debris to guarantee a contamination-free installation.

Check material compatibility: Before assembly, ensure that the sealing cap made of chloroprene is compatible with the lubricants and operating fluids used.

Select the correct size: Choose the correct size of the sealing cap to ensure optimal sealing and minimize the risk of overstretching or damage.

Regular inspection: Regularly check the sealing caps for wear or damage to replace them in time and ensure the protection of the angle joints.

Standards

DIN 71802: This standard defines the requirements and dimensions for angle joints for which the sealing caps are designed.

DIN ISO 1629: This standard contains the terms and definitions of elastomers, including chloroprene, from which the sealing caps are typically made.

Adhering to these safety instructions and standards ensures a safe and compliant use of the sealing caps for angle joints according to DIN 71802, which increases the durability and reliability of mechanical connections.

Frequently Asked Questions (FAQ)

What are the main advantages of sealing caps for angle joints according to DIN 71802?

Our sealing caps provide comprehensive protection against dust, dirt, splashing water, and vapors, extending the lifespan of angle joints and reducing maintenance effort. They are made of resilient chloroprene and can be used in a wide temperature range from -30°C to +110°C.

What material is used for the sealing caps and why?

The sealing caps are manufactured from chloroprene (CR). This material offers high resistance to mechanical stress as well as chemicals, oils, and fats, and allows use in temperature ranges from -30°C to +110°C, and temporarily even up to +140°C.

What sizes are the sealing caps available in?

Our sealing caps are available in sizes from 8 to 19 and are suitable for almost all standard versions of angle joints according to DIN 71802 and axial joints.

For which applications are the sealing caps particularly suitable?

The sealing caps are particularly advantageous in environments with high demands for protection against contamination, such as in mechanical engineering, vehicle construction, agricultural machinery, construction machinery, the food industry, and the chemical industry.

How do I correctly install the sealing caps?

Choose the appropriate size and ensure that the angle joints are clean and free from dirt. Slip the sealing cap over the ball of the ball stud and mount the stud into the ball socket. Check the secure fit of the sealing cap to ensure that no dirt or moisture can enter.

What standards should be considered when using the sealing caps?

Relevant standards are DIN 71802, which defines the requirements and dimensions for angle joints, as well as DIN ISO 1629, which contains designations and definitions of elastomers. These standards ensure the compatibility and reliability of sealing caps.

How does the use of sealing caps contribute to operational safety?

Protecting the angle joints from environmental influences increases the reliability and functionality of machines and systems, which improves operational safety and efficiency while simultaneously reducing maintenance efforts.

What temperatures can the sealing caps withstand?

Our sealing caps are designed for use in temperature ranges from -30°C to +110°C and can withstand short-term temperatures up to +140°C.

What should be considered regarding material compatibility?

Before installation, ensure that the sealing cap made of chloroprene is compatible with the lubricants and operating materials used to guarantee optimal function and longevity.

How often should the sealing caps be checked for wear?

It is recommended to regularly check the sealing caps for wear or damage to ensure timely replacement and maintain the protection of the angle joints.
