Product information "Taper keys with gip head DIN 6887"

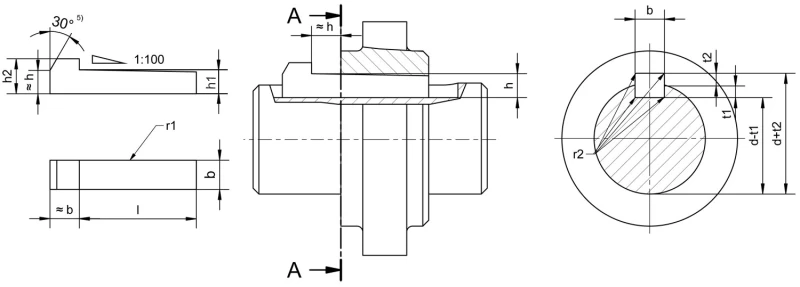

Taper key with gip head
The taper key with gip head in accordance with DIN 6887 is a machine element and is used to connect shafts and hubs. Although it looks like a parallel key, it is inclined at a slope of 1:100 and is driven into the associated slot using a hammer.
Unlike the parallel key in which the force is transmitted between shaft and hub by means of a positive fit, force transmission in the case of a wedge-type connection is performed by means of a nonpositive fit at the oblique surfaces in radial direction.
